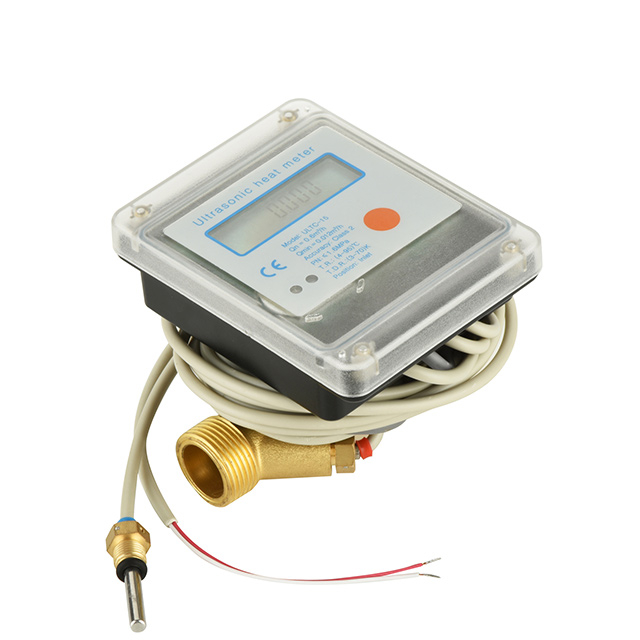

Touchscreen Ultrasonic Heat Meter with M-Bus/ RS-485/ Pulse Output

· The ultrasonic heat meter use advanced nonmagnetic technology, measures the flow volume and display the heat energy released or absorbed by water flow when passing though the heat exchange system.
· The temperature range is 4~95℃.
· Measurement unit: Kwh, Gcal, GJ
· Communication Interface choice:
· 1. M-BUS
· 2. RS-485
· 3. Pulse output
· Advantage: Using the touch control technique, instead of using a machine type key, to have more dependable and easily attain the function of keystroke

Model Number:
ULTC-15~20
PDF Download:
Ultrasonic Heat Meter ULTC-15-20.pdf

Availability:



Contact Supplier

Product Description

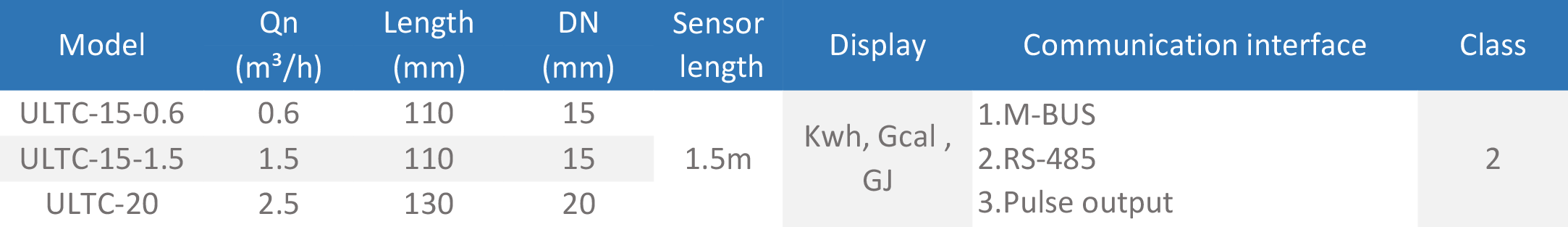

Models and Specifications：

ULTC-15-20

Features:

1. Lithium battery life: 10 years

2. Archive: 38 Month data historical（ M-BUS, RS-485, Pulse output )

3. Installation choice: Water supply pipeline or Water return pipeline

4. Horizontal or Vertical installation

5. Accuracy: Class 2, meets EN1434

6. Measuring range (q s/q i =100:1)

7. Temperature sensor: PT 1000

8. Environment standard Class: A

9. Min. temperature difference: 3℃

10. Water pressure: ≤1.6Mpa

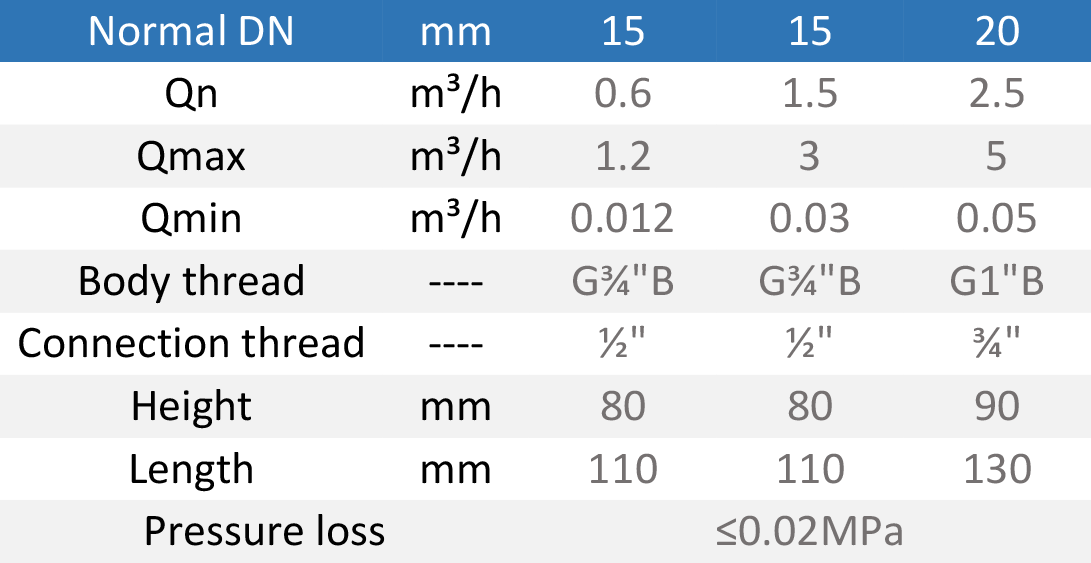

Main Technical Parameters:

ULTC-15-20-2

Temperature sensor pair: PT 1000

Installation：

CONTACT US FOR ADDITIONAL INFORMATION

or write to: sales@xinghangmeters.com
