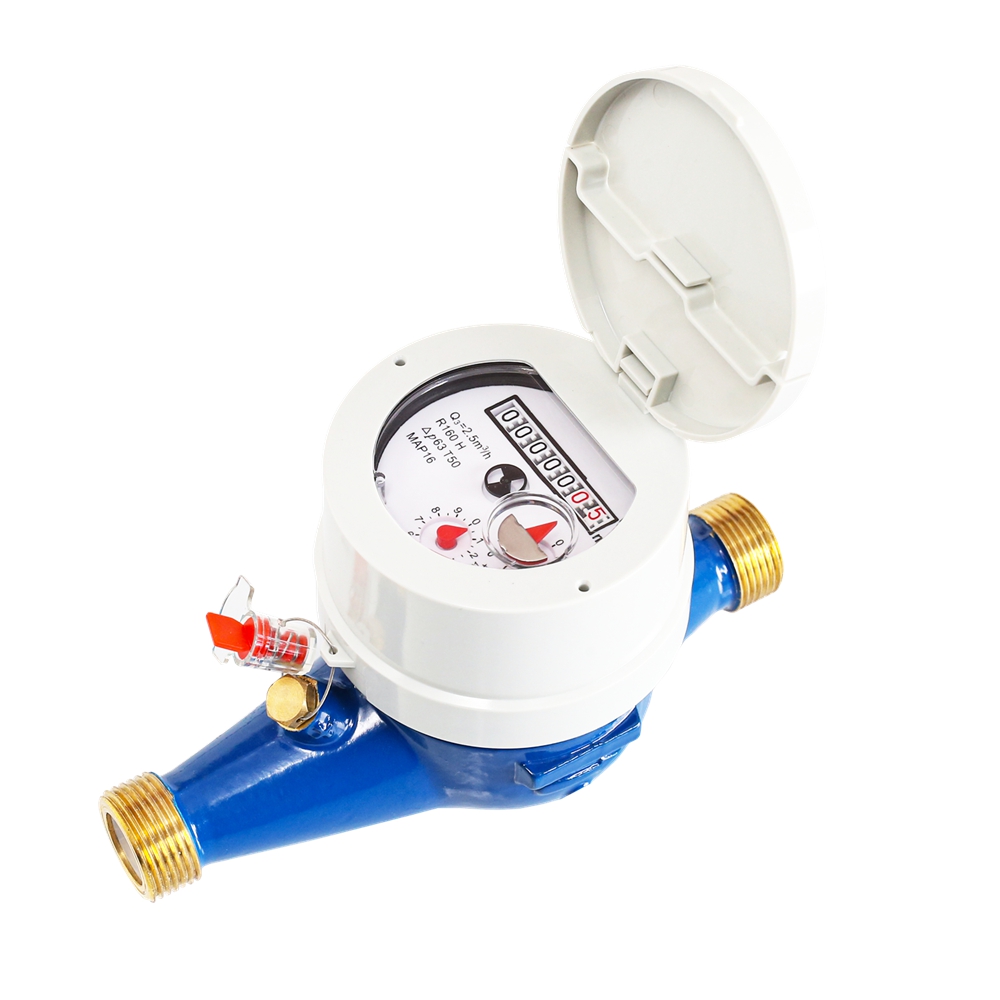

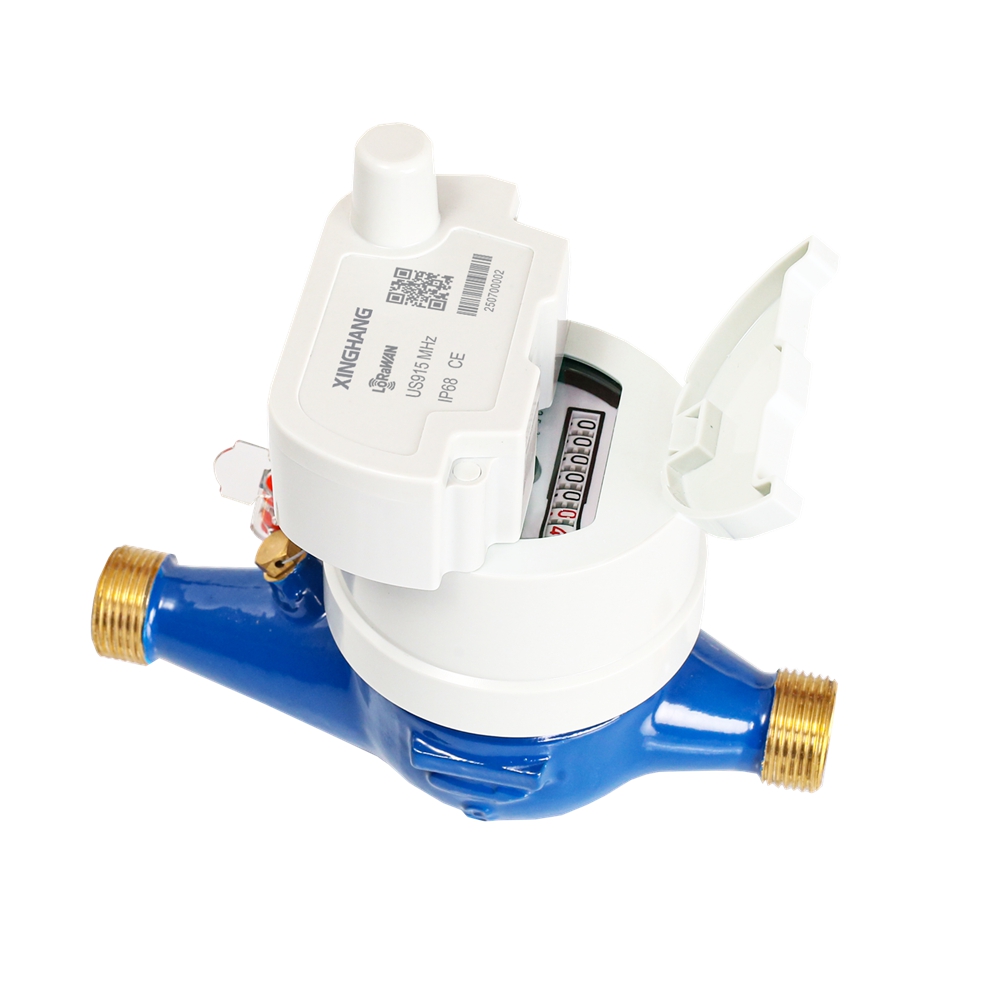

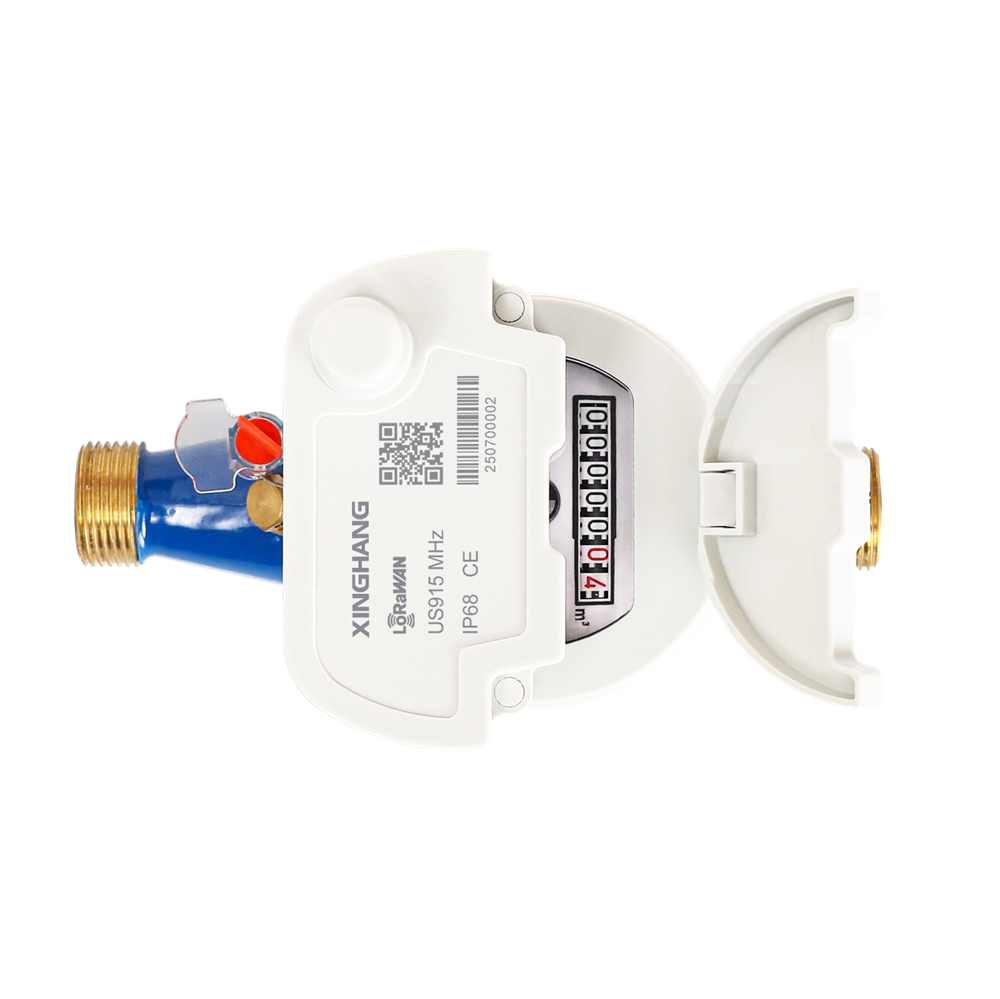

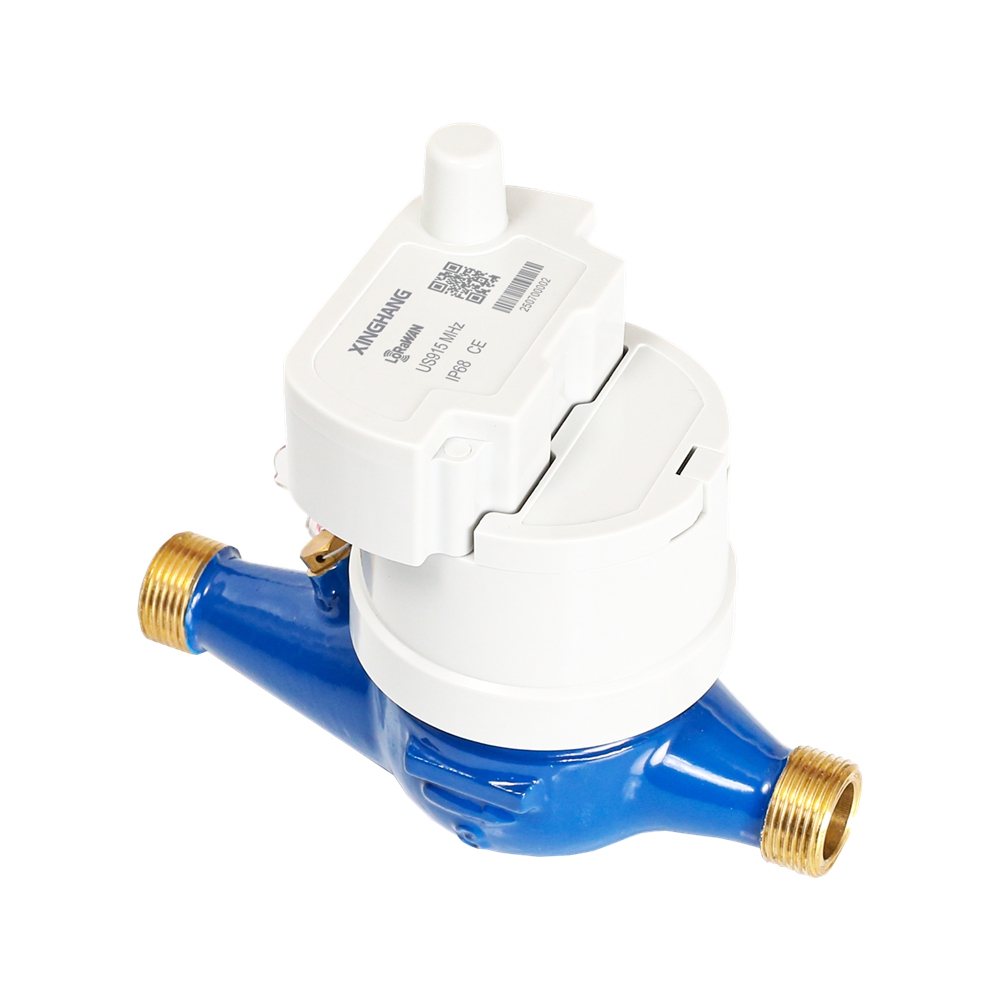

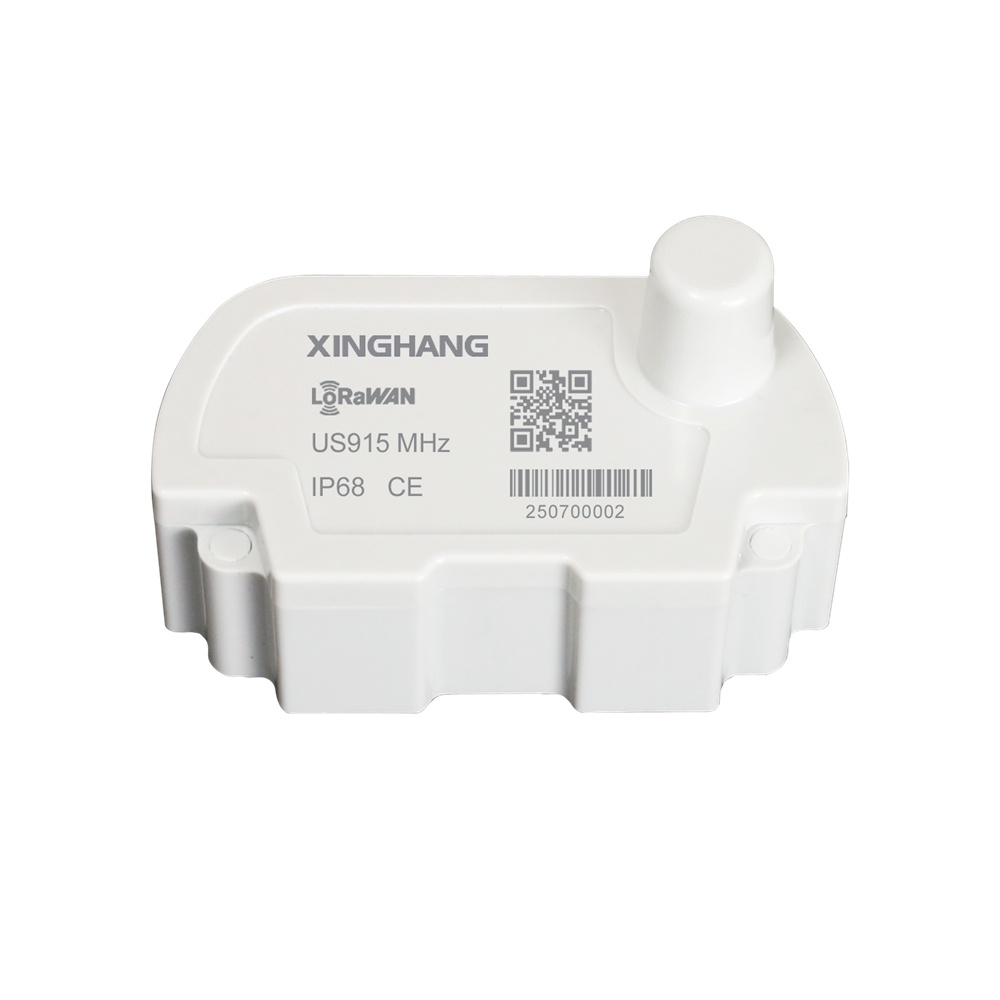

LoRaWAN, NB-IoT, 4G, Mbus, RS485 Modular Multi Jet Brass Water Meter

·  Multi Jet Dry type
·  Meter Body Material: Brass
·  Sizes: DN15 to 20mm, (1/2" - 3/4"), Available for cold water (50°C)/hot water (90°C)
·  Accuracy: Class C / R160
· Optical Port, M-BUS, RS-485, Pulse output, LoRa RF, LoRaWAN, NB-IoT, 4G (CAT 1).
· LoRaWAN Frequency: 865MHz, 868MHz, 915MHz, 902MHz, 920MHz, etc
Availability:
Contact Supplier

Smart Multi Jet Brass Modular Water Meter is the next-gen design with NB-IoT, LoRaWAN,4G, M-bus, RS485, Pulse connectivity, leak, backflow, tamper, battery etc alarms, and up to 14 year battery life. Features plug & play modular installation and certified Class C/R160 accuracy. Custom configurations available.

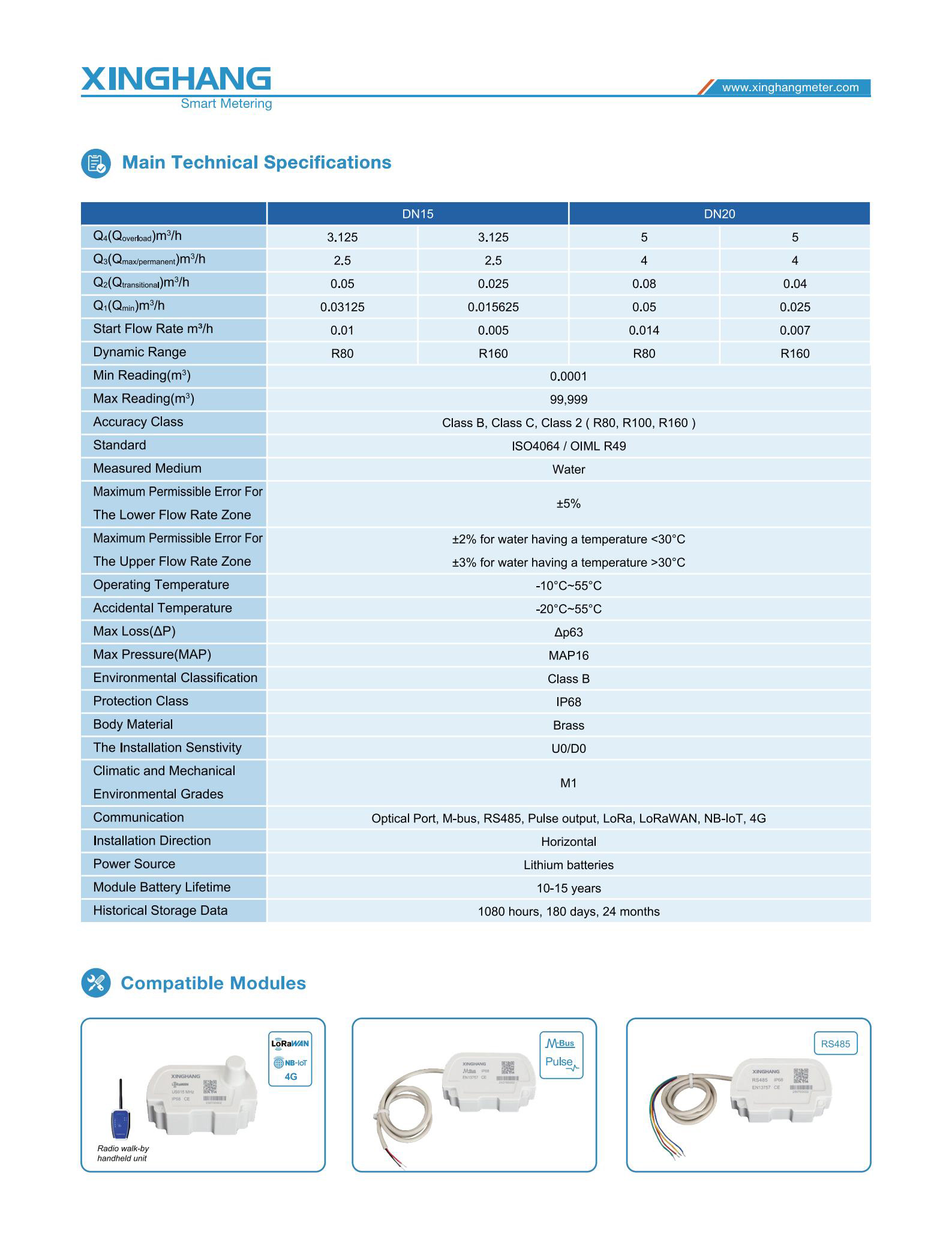

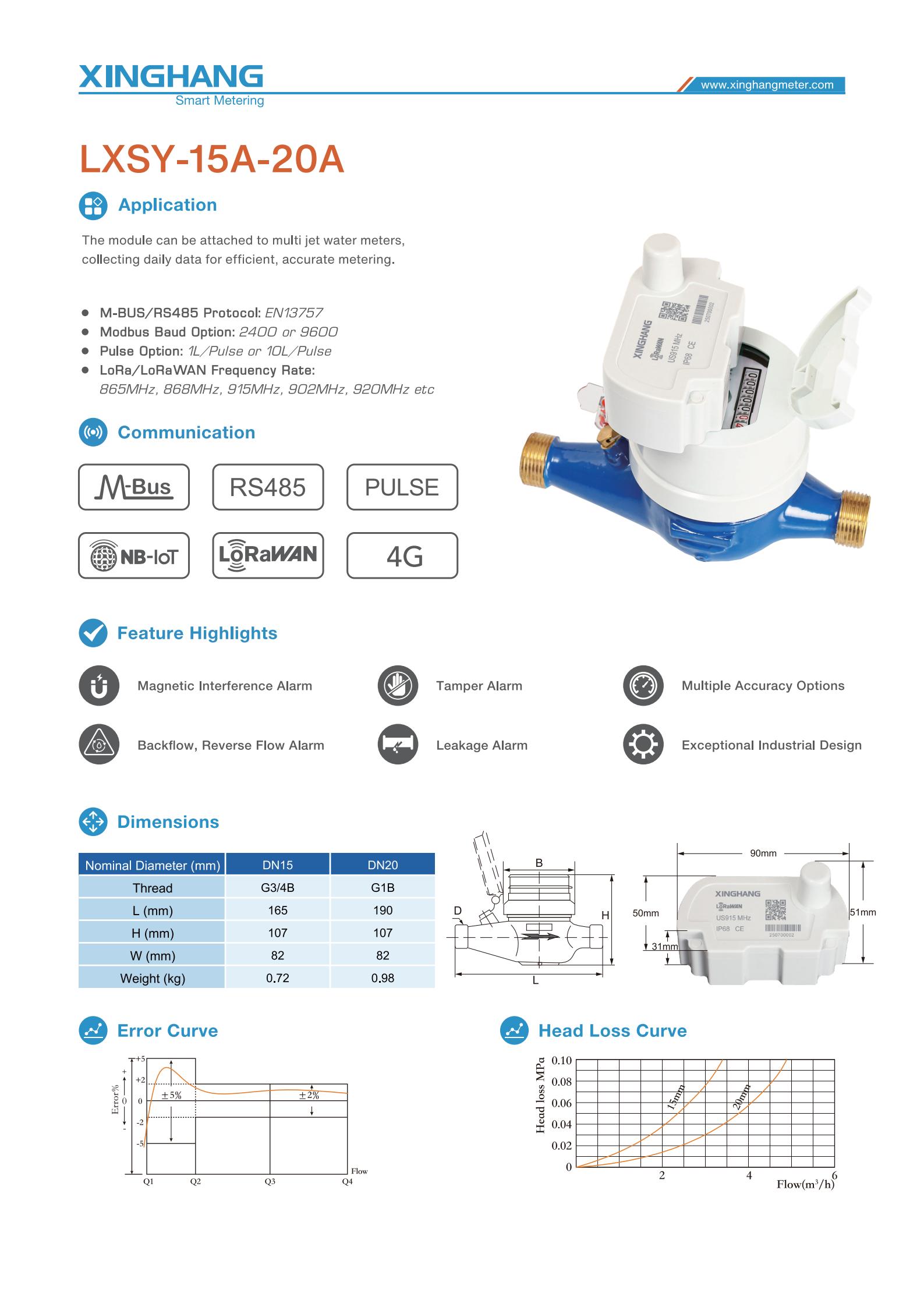

LXSY-15A-20A Modular Brass Multi Jet Water Meter Technical Brochure_0202

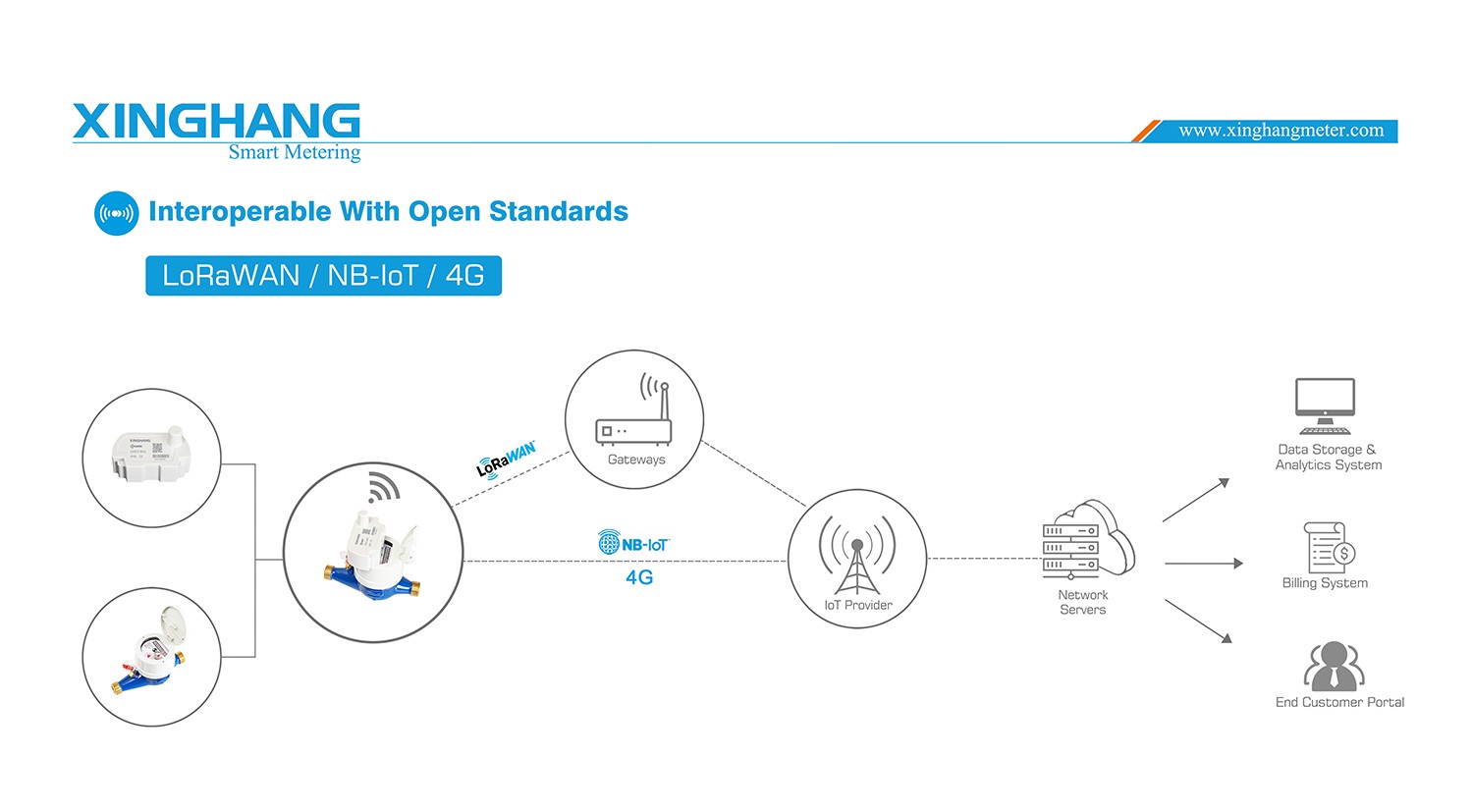

153-1500(1)
