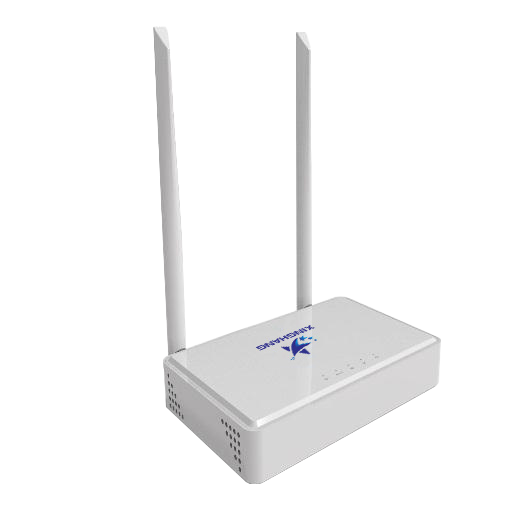

Product Characteristics
P27dBm max output power
High sensitivity with -141dBm@300bps
Half duplex mode for LoRaWAN communication
LoRaWAN uplink: 8 normal multi-SF channels (SF7 to SF12,125kHz), 1 single SF high speed data rate channel and 1 GFSK channel
LoRaWAN downlink: 1 normal channel(125kHz/250kHz/500kHz LoRa configurable or GFSK)
Communication data rate 292bps~ 50kbps
Support LoRaWAN Class A/C
WIFI 2.4GHz, Compatible with WLAN 802.11b/g/n
AP mode
Station mode
PPPoE mode to connect to network
1xLoRaWAN Antenna, 1xWIFI Antenna
LoRaWAN antenna Gain: 0dBi default
WIFI antenna Gain: 5dBi default
10/100M Ethernet, LAN/WAN switch automatically via one RJ45
Configurable via WIFI or LAN
LED status for Power/WIFI/LoRaWAN/USB
DC 12V input
Indoor use
Operating frequency bands (Option when order):
434MHz, 470MHz/510MHz, 780MHz, 868MHz, 915MHz.
