ULTA-50~500

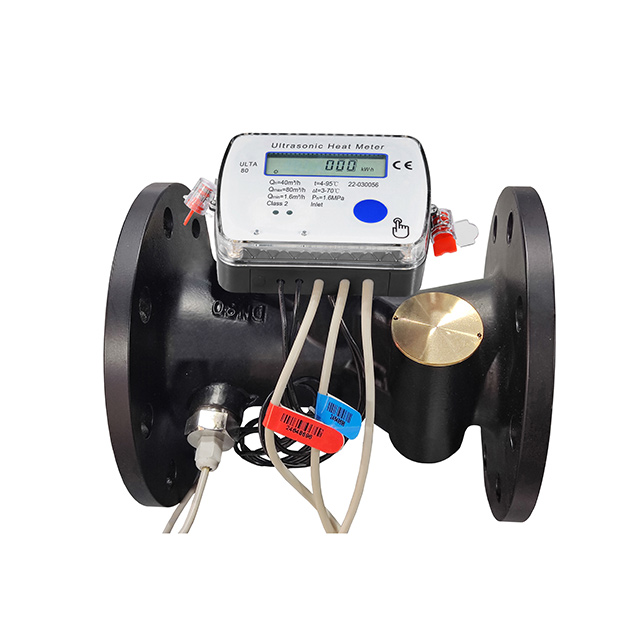

BTU Meter & Energy Measurement
BTU meters are engineered for precision measurement across diverse systems such as：
• Heating, Ventilation, and Air Conditioning（HVAC)
• Building Management Systems (BMS)
• Domestic Hot Water (DHW)
• District Cooling Systems (DCS)
• District Energy Systems (DES)
• Industrial & Commercial (I&C) applications etc.

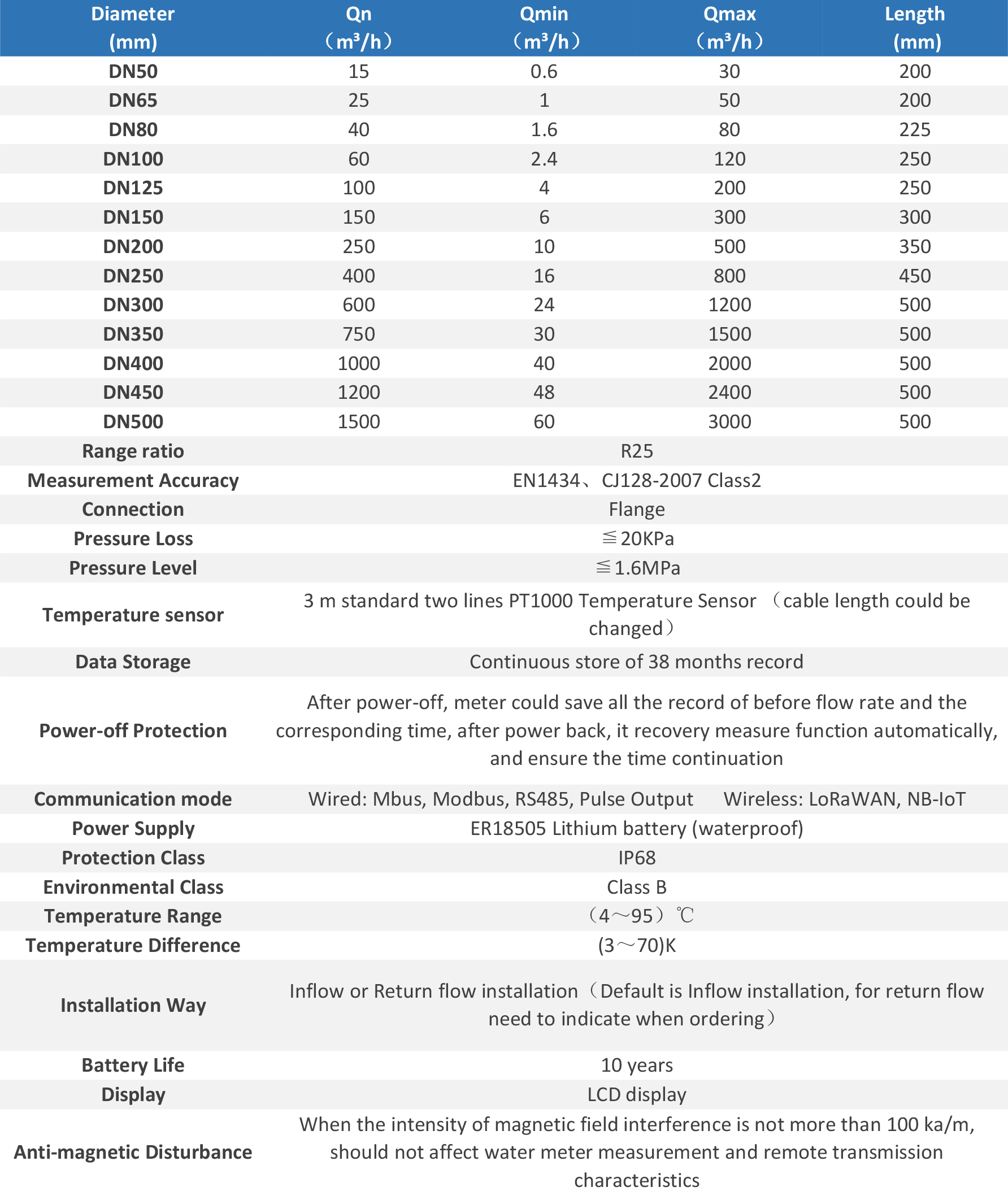

Models and Specifications：
Features:
1. Lithium battery life: 10 years
2. Archive: 38 Month data historical（ M-BUS, RS-485, Pulse output )
3. Installation choice: Water supply pipeline or Water return pipeline
4. Horizontal or Vertical installation
5. Accuracy: Class 2, meets EN1434
6. Measuring range (q s/q i =50:1)
7. Temperature sensor: PT 1000
8. Environment standard Class: B
9. Min. temperature difference: 3℃
10. Water pressure: ≤1.6Mpa
