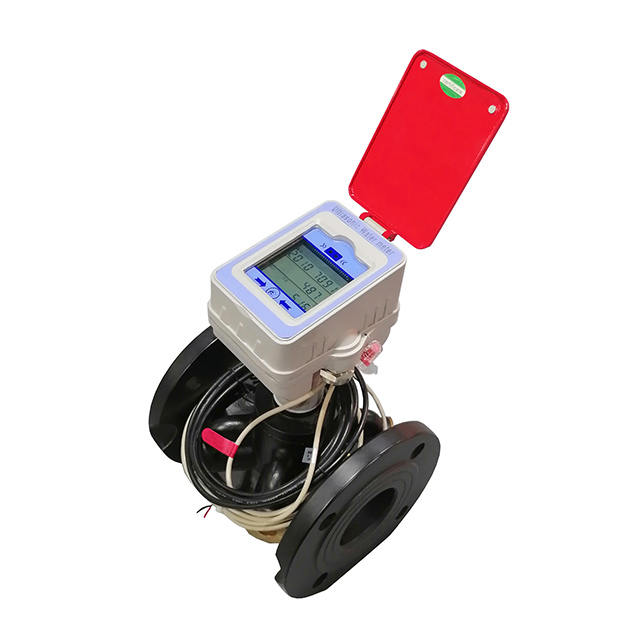

DN50-DN200 Bulk Ultrasonic Water Meter With M-Bus, RS485, Pulse, Lorawan, Modbus, NB-IoT

The DN50-DN200 Bulk Ultrasonic Water Meter With M-Bus, RS485, Pulse, Lorawan, Modbus, NB-IoT is a new type of electronic water meter for flow measurement based on the principle of ultrasonic time difference. It is used to measure the instantaneous flow and cumulative total amount of water flowing through the tap water pipeline. The ultrasonic water meter has remote function, and the remote reading of data can be realized through the system platform.

Product Characteristics

1. Accuracy: R200

2. Sizes: DN50-DN200

3. Communication: M-BUS, RS-485, Modbus, Pulse output, LoRa, LoRaWAN, NB-IoT

4. Frequency: LoRa/ LoRaWAN   865MHz, 902MHz, 868MHz, 915MHz, other customized frequency requirement

Data Sheet

INDICATING ERROR

At low zone is ±5% from minimum flow rate  (qmin)  to transitional flow rate (qt) exclusive boundary

At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)

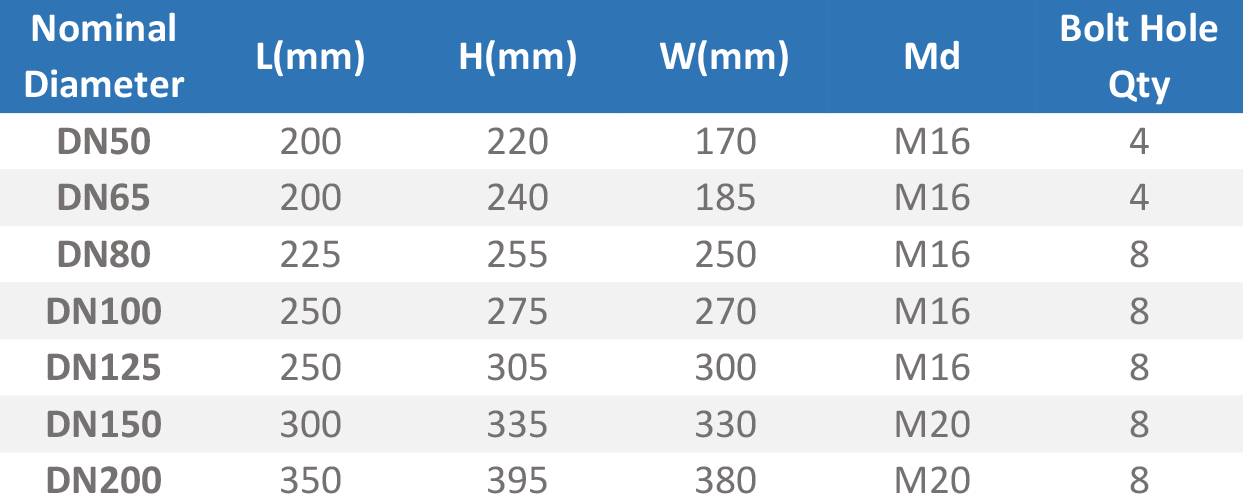

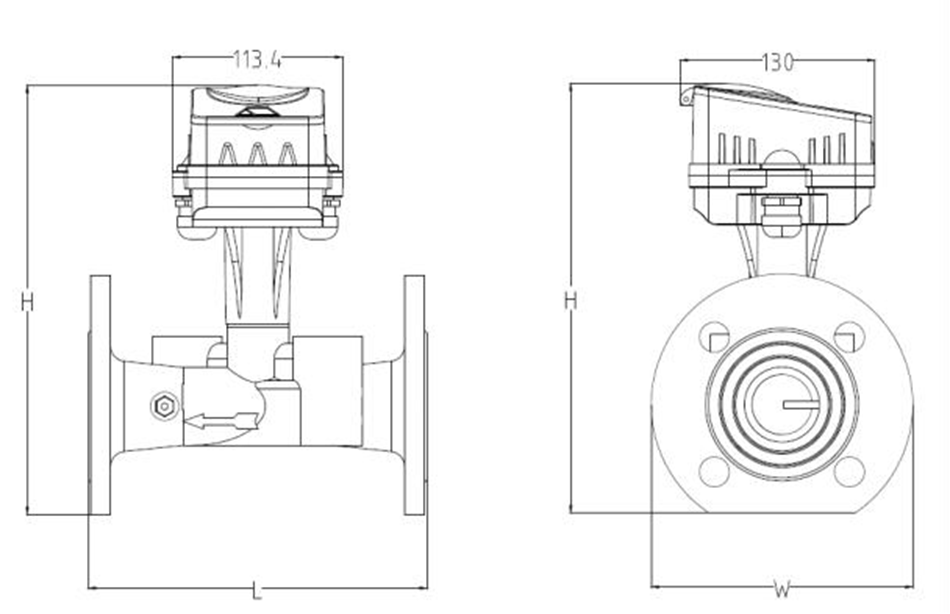

Dimensions And Weight

Working Conditions:

Water temperature：≤50℃ for cold water meter

Working pressure：≤16 Bar
